Industrial Vehicles Intelligent Manageability Digital Platform
Menu
Technical Parameter

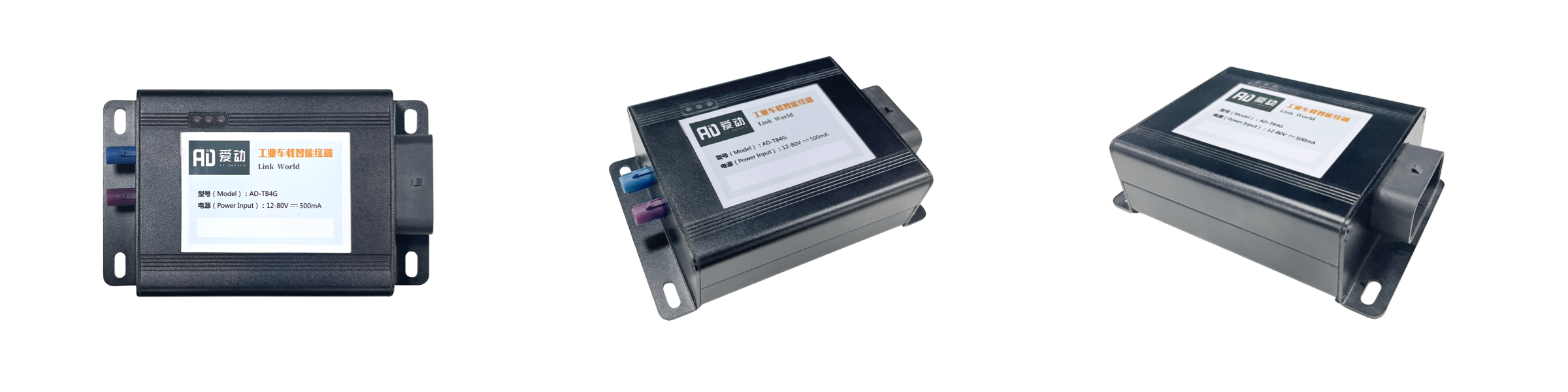

4G Intelligent Vehicle Terminal
Weight
243g±1g
Shell Material
Aluminum material
Input Voltage
DC 12—80V
Input Current
≤ 500mA
Working Temperature
-25℃~+70 ℃
Storage Temperature
-40℃~+85 ℃
Working Humidity
5%~90%RH,No condensation
Storage Humidity
0%~95%RH,No condensation
Vibration Adaptability
Accord with GB20816-2006
Start Time
≤ 3S
4G Network
LTE、GSM
GPS Performance
GPS+BD dual frequency
Positioning Accuracy
Outdoor ≤ 10m
Typical Power
2W
Steady-state Power
≤ 3W
Waterproof Level
P54
Horizontal Positioning Accuracy
In open outdoor environments ＜ 5m

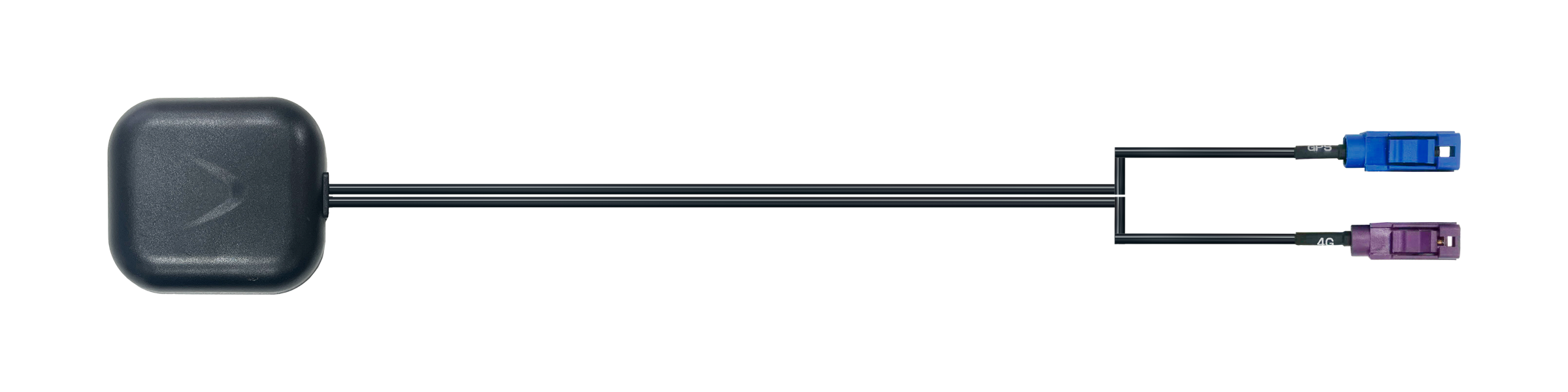

4G+GPS 2-in-1 Antenna
Size
（60±0.5）×（52.5±0.5）×（15.6±0.5）mm
Weight
100g
Power Capacity
33dbm
Antenna Interface
Fakra interface
Feed Impedance
50ohm
Working Temperature
-30℃~+70℃
Storage Temperature
-30℃~+80℃
4G Operating Frequency
800-900/1700-2700Mhz
GPS Operating Frequency
1561.09/1575.42Mhz
Gain
3DBi
Antenna Efficiency
35%~80%
Voltage Standing Wave Ratio
＜2
Polarization Mode
4G vertical polarization/GPS circular polarization
Axis Ratio
GPS 4.0/4G NA
Radiation Direction
Omnidirectional
Purpose
Integrated 4G communication and positioning system functions, providing high-speed data transmission and accurate location positioning.

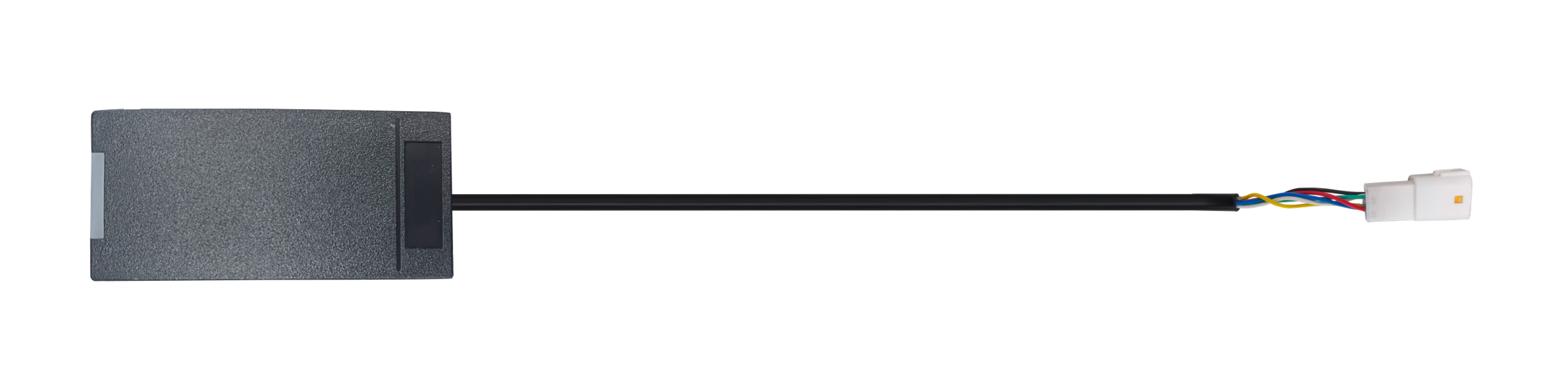

RFID Card Reader
Size
（102.7±0.5）×（48.3±0.5）×（21±0.5）mm
Weight
212g
Adapted Voltage
12V
Working Current
≤ 50mA
Support Frequency
13.5MHz (IC card) or optional 125kHz (ID card)
Concurrent Quantity
1 sheet for 1 second
Sensing Distance
1~3cm
Working Temperature
-25℃~+70 ℃
Storage Temperature
-35℃~+80 ℃
Working Humidity
10%~90% ,No condensation
Communication Interface
Weigen 34
Working Mode
Indicator lights、 Buzzers
Protection Level
IP54
Purpose
Used to read and interpret information embedded in RFID tags or cards, used for swiping cards to unlock cars.

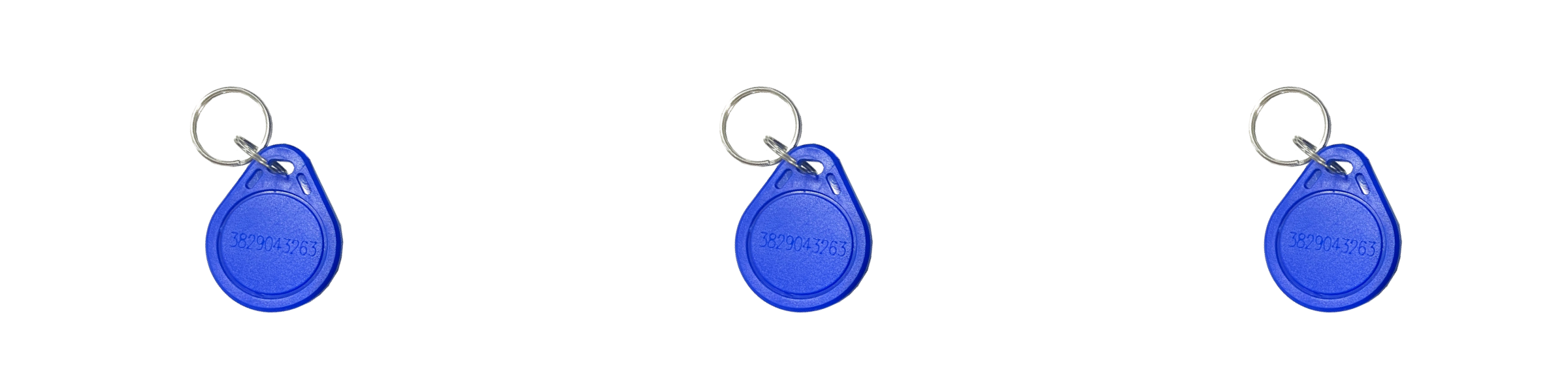

IC Card
Name
IC Card
Size
（40±0.5）×（32±0.5）×（4±0.3）mm
Material
ABS
Waterproof Level
IP65
Working Current
≤ 50mA
Frequency
13.56Mhz
Standard Configuration
3 Sheets
Purpose
Can be used to swipe cards to unlock cars.

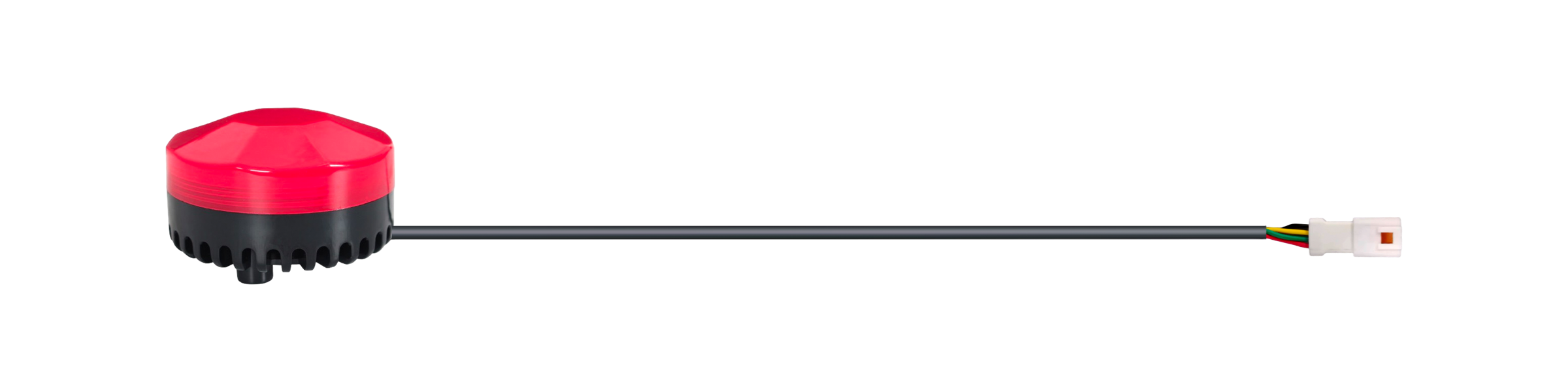

Sound And Light Alarm Device
Name
Sound and light alarm device
Input Voltage
DC 6V-30V
Output Power
3W/4Ω
Audio Format
Mp3 format (bitrate ≤192Kbps)
Memory Capacity
Default built-in 4M flash memory
Wave Volume
0-90db
Control Mode
Serial communication (modbus RTU protocol)
Flashing Mode
Burst flash, Slow flash, Long flash
Signal-to-noise Ratio
＞ 75db
Protection Level
IPX65
Usage Environment
Indoor/Outdoor
Purpose
Voice prompts, Fault reminders, Sound and light alarms
Pressure Sensor
Name
Pressure sensor
Input Voltage
DC12～36V
Pressure Range
0～2.5～60MPa
Pressure Mode
Gauge pressure, Absolute pressure
Output Signal
4～20mA
Accuracy Level
0.1%FS、0.25%FS
Working Temperature
-40℃～85℃
Seismic Performance
10g（20...2000Hz）
Overload Capacity
200% of full scale
Response Frequency
≤ 500Hz
Protection Level
IP67
Purpose
Used to collect the lifting status of forks and monitor effective loading/overloading.

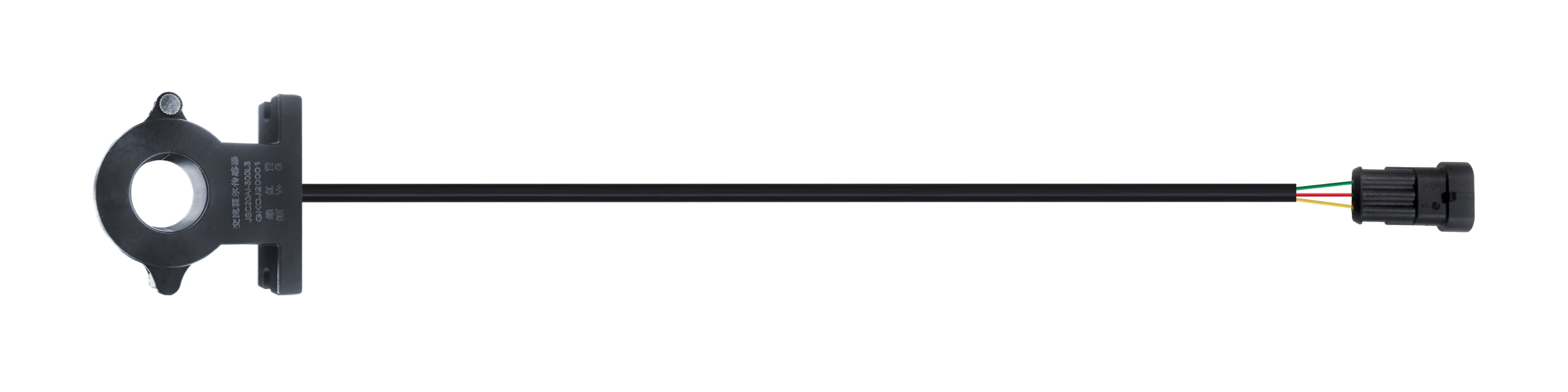

AC Hall Sensor
Name
AC Hall sensor
Input Voltage
12V
Rated Measurement Current
300A（AC）
Measuring Range
360A（AC）
Rated Output Voltage
DC0-5V
Zero Offset Voltage
30mV
Supply Voltage
+12VDC ~ +15VDC（5%）
Dielectric Strength
50Hz，1min，3KV
Load Resistance
≥10KΩ
Working Environment Temperature
-25℃～85℃
Storage Environment Temperature
-40℃～125℃
Weight
≈65g
Execution Standards
SJ20790-2000；JB/T 7490-2007
Purpose
Non CAN trams can collect the current lifting status of forks through current changes.

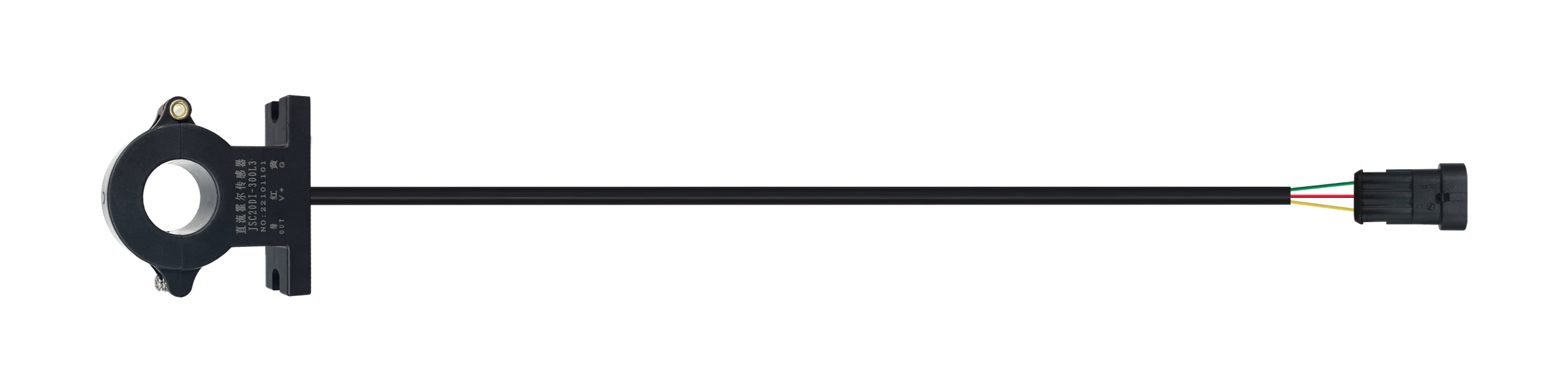

DC Hall Sensor
Input Voltage
12V
Rated Measurement Current
300A（AC）
Measuring Range
360A（AC）
Forward Rated Output Voltage
DC0-5V
Reverse Rated Output Voltage
DC0-5V
Zero Offset Voltage
30mV
Supply Voltage
+12VDC ~ +15VDC（5%）
Dielectric Strength
50Hz，1min，3KV
Load Resistance
≥10KΩ
Working Environment Temperature
-25℃～85℃
Storage Environment Temperature
-40℃～125℃
Weight
≈65g
Execution Standards
SJ20790-2000；JB/T 7490-2007
Purpose
Non CAN trams can collect the current lifting status of forks through current changes.

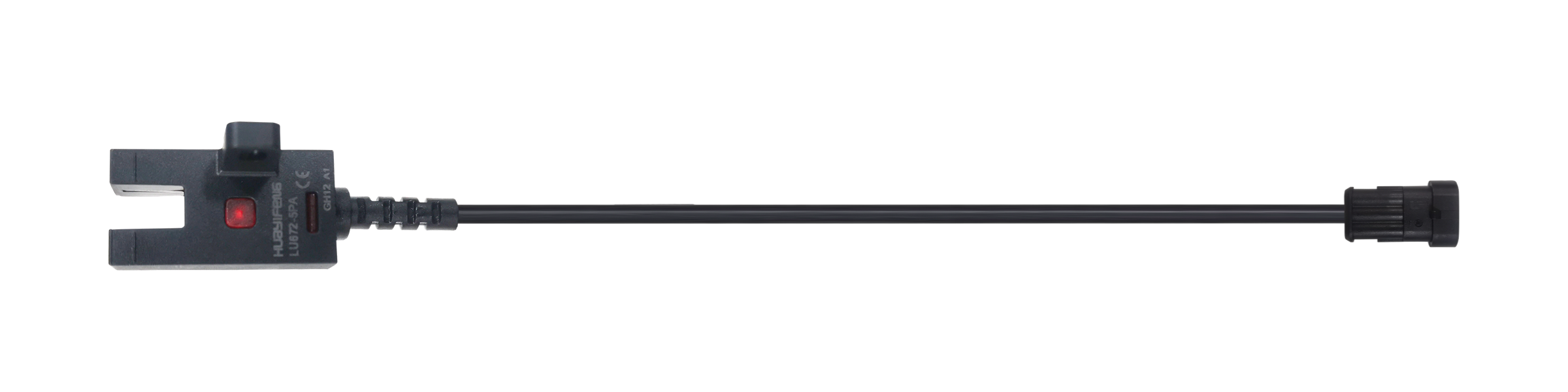

Slot Type Photoelectric Sensor
Input Voltage
DC12~24V
Working Temperature
-25℃ ~ +70 ℃
Response Frequency
2KHZ
Protection Circuit
Short circuit protection and polarity reversal protection
Action Form
Equipped with two independent outputs simultaneously
Detection Distance
5mm groove width
Detecting Objects
1.20×0.88mm Opaque objects
Display Light
Action display light red
Shell Material
PC
Wire Length
2M(Customizable)
Protection Level
IP66
Purpose
Non CAN diesel vehicles can determine fork movement by collecting hydraulic lever displacement.

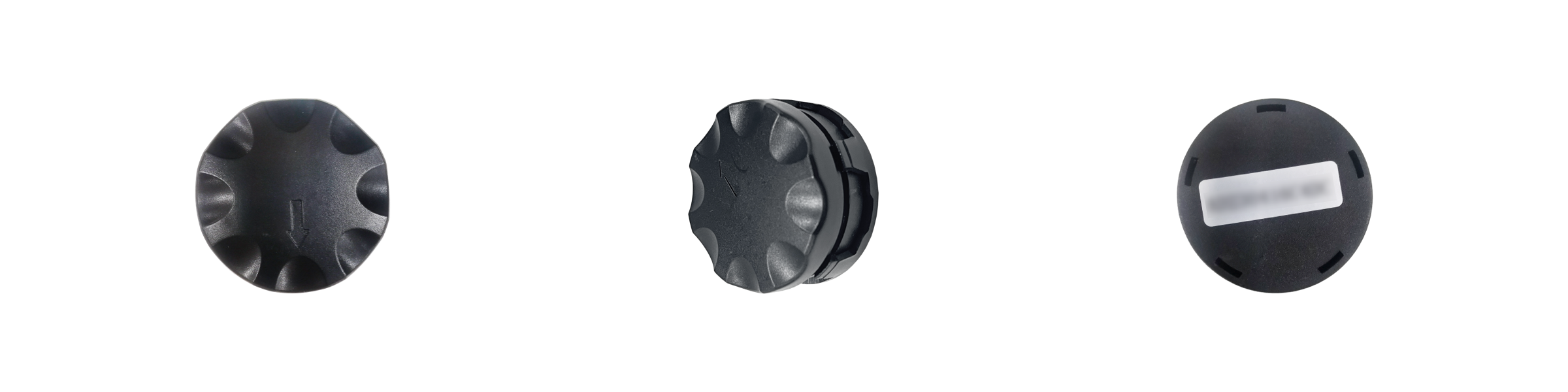

Wireless Speed Sensor
Input Voltage
12V
Measurement Range Accuracy
0.25km/h~40km/h (Wheel diameter 60cm)
Resolving Power
0.1km/h
Response Time
1s
Output Signal Type
RS485
Working Temperature Range
-25℃~85℃
Power Supply Voltage
DC12V
Communication Mode
2.4GHz
Protection Level
IP54
Purpose
Non CAN vehicles can be used to collect vehicle speed.
