Industrial Vehicles ADAS Intelligent Driving Assistance System
Overview
Parameter
Download
Menu
Overview
Parameter
Download
Technical Parameter
AI Visual Host
Operating System
Linux operating system
Size
200mm×120mm×57mm
Running Memory
6GB
Working Temperature
-20℃~+70℃
Environmental Humidity
<80%
Working Voltage
DC 9V-36V
Working Power
40W
USB Interface
2×USB 3.0 2×USB 2.0
Expansion Interface
RS485/RS232
Camera Circuit
Development of 4-way AHD high-definition camera+1-way extended AHD high-definition camera
Best Recognition Distance
Standard 3m-10m, with a maximum distance of 20m available
Recognition Time
<300ms
Waterproof Level
P54
Recognition Accuracy
>98%

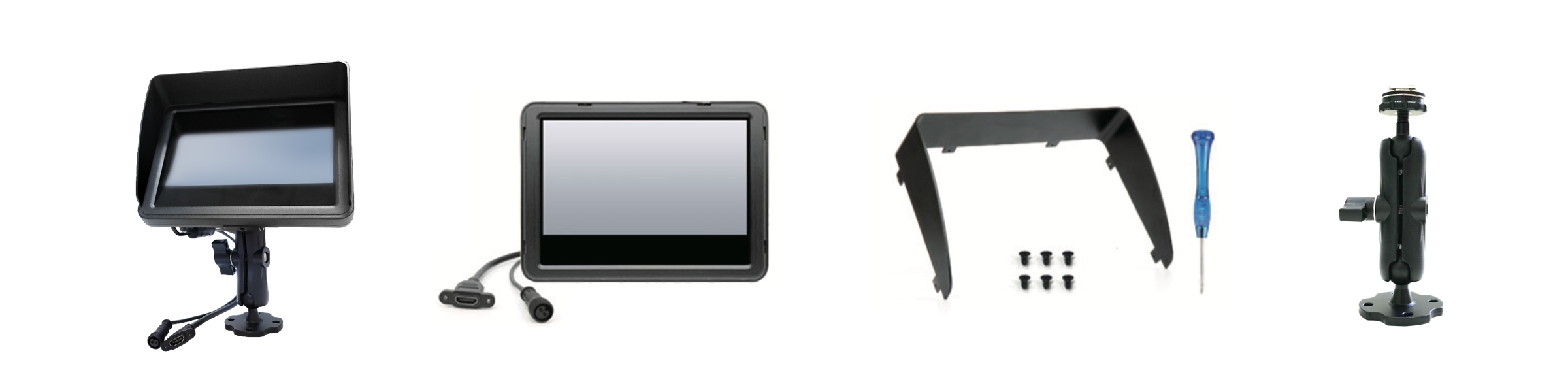

7-inch Industrial Waterproof Display
Name
7-inch Industrial Waterproof Display
Working Voltage
12-24V
Working Power
≈4.5W
Video Signal
HDMI input
Waterproof Level
IP68
Working Temperature
-20°C to +70°C
Storage Temperature
-30°C to +80°C
Display Type
7-inch color LCD display screen
Screen Features
IPS Full View HD
Display Mode
Single Screen
Display Area
153.81(W)*85.52(V) mm
Physical Resolution
1024*600*RGB
Response Time
25ms
Brightness
500 (cd/m2)
Contrast Ratio
500:1
Body Size
188*137*27.5mm

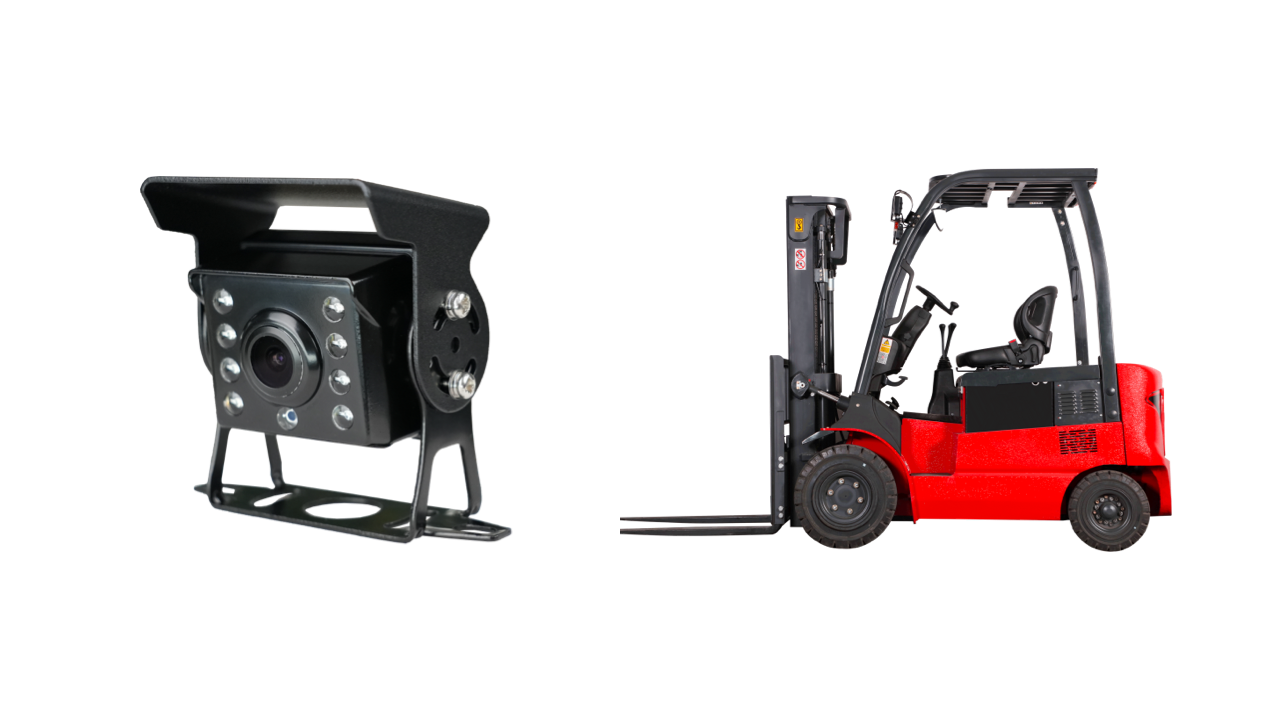

Wide Dynamic Camera
Name
Wide dynamic camera
Sensor Type
1/2.9 inch CMOS
Effective Pixels
1280*720
Electronic Shutter
PAL:1/25s~1/10000s NTSC:1/30s~1/10000s
Photosensitive Area
1/2.9 coms
Video Frame Rate
50Hz:1280×720@25fps
Definition
1080p
Focal Length
2.8mm
Visual Angle
Horizontal 100 degrees
Image Processing
Supports automatic gain, automatic white balance, backlight compensation, and strong light suppression
Infrared Supplementary Light
850nm F5,8 lamp
Day And Night Switching
Color/black and white IR-CUT switching
Sound To Noise Ratio
≥48db
Joint And Definition
Four core aircraft carrier head
Line Length
5000mm
Power Supply Voltage
DC12V
Working Power Consumption
≤4 W
Working Temperature
-30℃~+70℃
Heating Temperature
- -
Wide Dynamic Range
Auto
Working Current
80mA±10%
Working Current Night Vision
200mA±10%
Size
78×38×65mm(length x width x height)
Net Weight
210g
Waterproof Level
IP67
Best Recognition Distance
≤10m
Wide Angle Camera
Name
Wide angle camera
Sensor Type
1/2.9 inch CMOS
Effective Pixels
1280*720
Electronic Shutter
PAL:1/25s~1/10000s NTSC:1/30s~1/10000s
Photosensitive Area
1/2.9 coms
Video Frame Rate
50Hz:1280×720@25fps
Definition
1080p
Focal Length
2.8mm
Visual Angle
Horizontal 160 degrees
Image Processing
Supports automatic gain, automatic white balance, backlight compensation, and strong light suppression
Infrared Supplementary Light
850nm F5,8 lamp
Day And Night Switching
Color/Black and White
Sound To Noise Ratio
≥48db
Joint And Definition
Four core aircraft carrier head
Line Length
5000mm
Power Supply Voltage
DC12V
Working Power Consumption
≤4 W
Working Temperature
-30℃~+70℃
Heating Temperature
- -
Wide Dynamic Range
Auto
Working Current
60mA±10%
Working Current Night Vision
180mA±10%
Size
78×38×65mm(length x width x height)
Net Weight
210g
Waterproof Level
IP67
Best Recognition Distance
≤8m

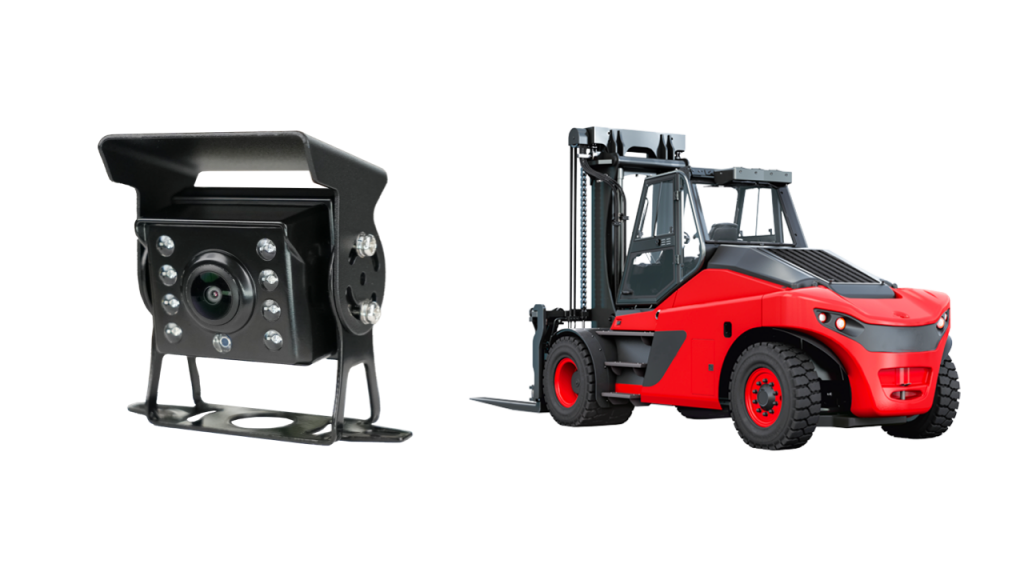

Wide Dynamic Telephoto Camera
Name
Wide dynamic telephoto camera
Sensor Type
1/2.9 inch CMOS
Effective Pixels
1280*720
Electronic Shutter
PAL:1/25s~1/10000s NTSC:1/30s~1/10000s
Photosensitive Area
1/2.9 coms
Video Frame Rate
50Hz:1280×720@25fps
Definition
1080p
Focal Length
6mm
Visual Angle
Horizontal 55 degrees
Image Processing
Supports automatic gain, automatic white balance, backlight compensation, and strong light suppression
Infrared Supplementary Light
850nm F5,8 lamp
Day And Night Switching
Color/black and white IR-CUT switching
Sound To Noise Ratio
≥48db
Joint And Definition
Four core aircraft carrier head
Line Length
5000mm
Power Supply Voltage
DC12V
Working Power Consumption
≤4 W
Working Temperature
-30℃~+70℃
Heating Temperature
- -
Wide Dynamic Range
Auto
Working Current
80mA±10%
Working Current Night Vision
200mA±10%
Size
78×38×65mm(length x width x height)
Net Weight
210g
Waterproof Level
IP67
Best Recognition Distance
≤20m

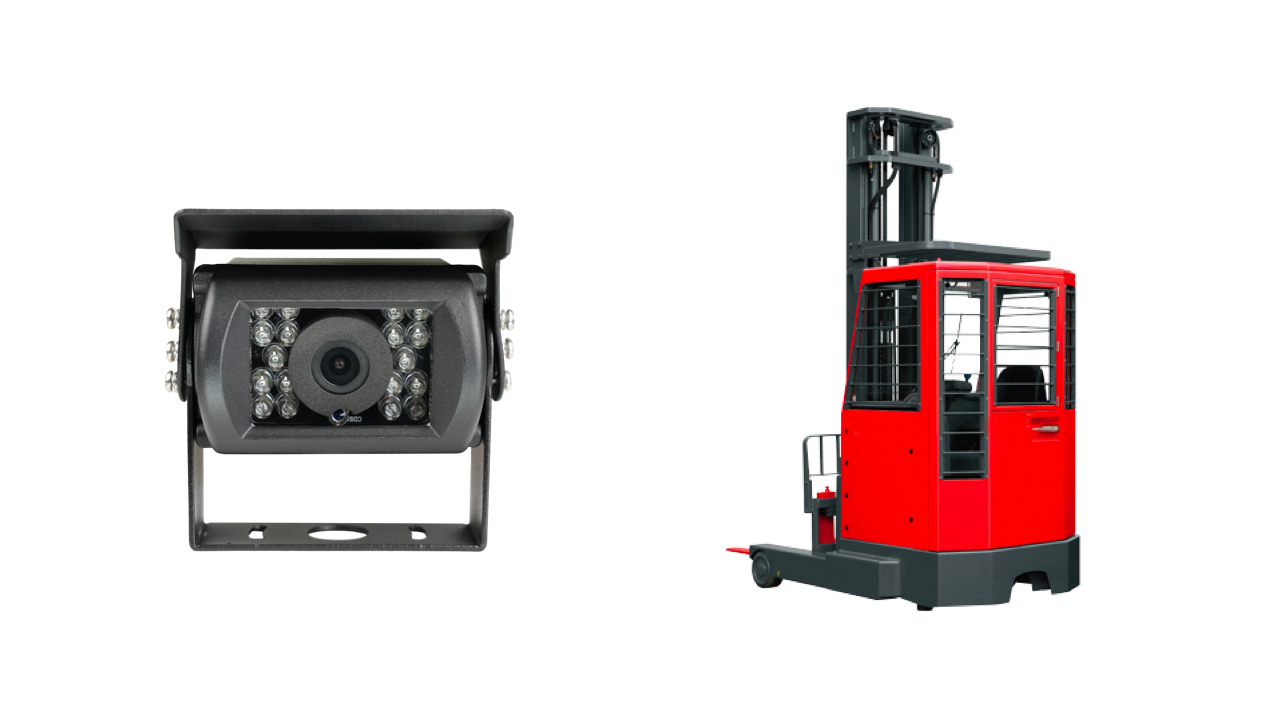

Cold Storage Camera
Name
Cold storage camera
Sensor Type
1/2.9 inch CMOS
Effective Pixels
1280*720
Electronic Shutter
PAL:1/25s~1/10000s NTSC:1/30s~1/10000s
Photosensitive Area
1/2.9 coms
Video Frame Rate
50Hz:1280×720@25fps
Definition
1080p
Focal Length
2.8mm
Visual Angle
Horizontal 100 degrees
Image Processing
Supports automatic gain, automatic white balance, backlight compensation, and strong light suppression
Infrared Supplementary Light
850nm F5,8 lamp
Day And Night Switching
Color/Black and White
Sound To Noise Ratio
≥48db
Joint And Definition
Four core aircraft carrier head
Line Length
5000mm
Power Supply Voltage
DC12V
Working Power Consumption
≤4 W
Working Temperature
-30℃~+70℃
Heating Temperature
Up to 70 ℃
Wide Dynamic Range
Auto
Working Current
160mA±10%
Working Current Night Vision
380mA±10%
Size
77×72×78mm(length x width x height)
Net Weight
230g
Waterproof Level
IP67
Best Recognition Distance
≤10m

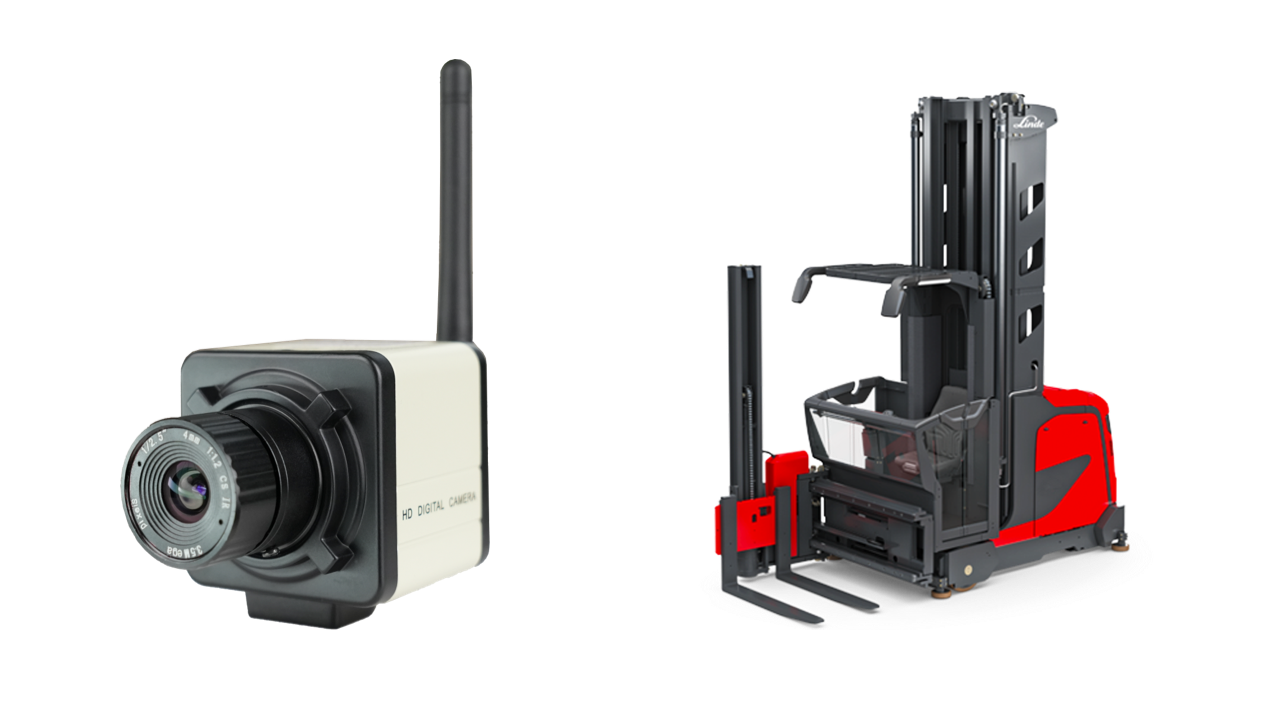

Wireless Camera
Name
Wireless camera
Sensor Type
2 million 1/3 "F37 high-performance CMOS sensor
Effective Pixels
1280*720
Electronic Shutter
1/50 (1/60) s to 1/10000s
Photosensitive Area
1/3 coms
Definition
1080p
Focal Length
4mm
Visual Angle
Horizontal 90 degrees
Day And Night Switching
IR-CUT
Network Interface
1 * RJ45 network interface, 10/100M adaptive
Signal Interface
1 photoresistor interface, 1 IR-CUT driver interface
WIFI Antenna Interface
1 WIFI antenna interface
Noise Reduction
Supports 2D/3D noise reduction
Image Output
Main stream: 1920* 1080@12fps ; Sub stream: 640* 360@12fps
Power Supply Voltage
DC12V
Working Power Consumption
≤3W
Working Temperature
-30℃~+70℃
Heating Temperature
- -
Wide Dynamic Range
Auto
Working Current
160mA±10%
Size
77×72×78mm(length x width x height)
Net Weight
230g
Waterproof Level
IP54
Best Recognition Distance
≤10m

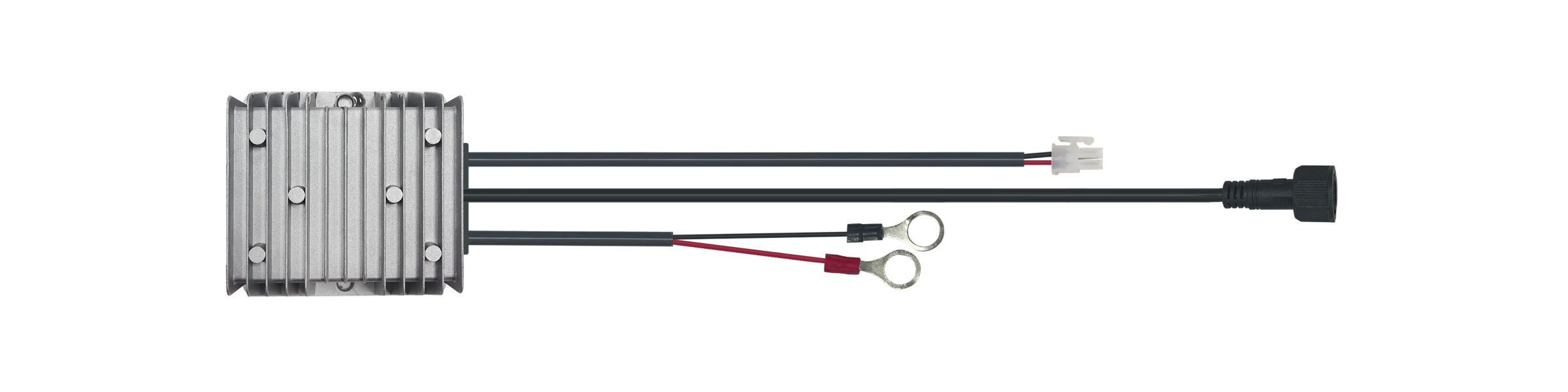

Ac Adapter
Name
Ac adapter
Size
74mm*74mm*32mm
Input Voltage
15-96V
Output Voltage
DC 12V/10A - dual power supply for display and host
Working Temperature
-30℃~ +85℃
Conversion Efficiency
Highest 90%
Load Adjustment Rate
±1%
Negative Pressure Adjustment Rate
±0.5%
Waterproof Level
Body IP67
Dynamic Response Speed
5% 200uS

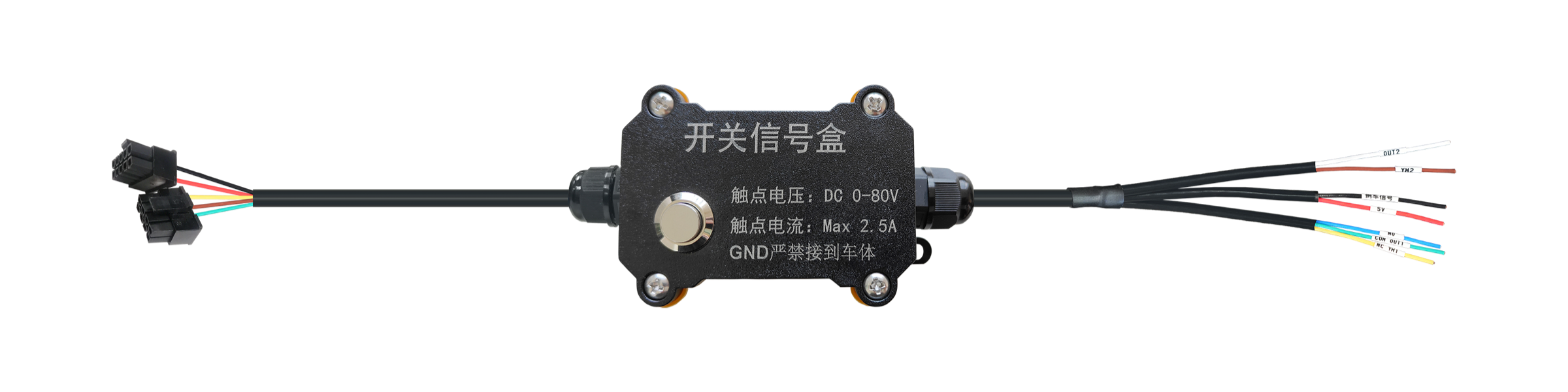

Switch Signal Box
size
78mm*53mm*40mm
Input Voltage
DC 5V
Working Temperature
-30℃~ +85℃
Power Supply Current
<0.5A
Switch Signal Output
COM、NC、NO (Contact 80V,2.5A)
Throttle Analog Voltage Output
0-80V adjustable
Release Speed Limit
Supports one click speed limit lifting and holding for 10 seconds
Waterproof Level
Box body IP56

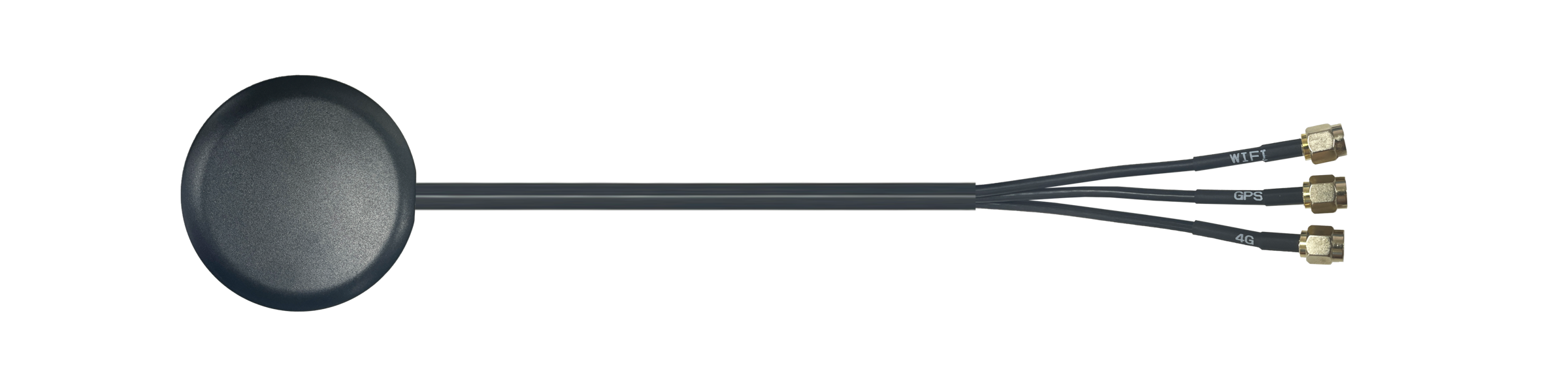

Three-in-one Antenna
Name
Three-in-one antenna
size
φ81, Height 14.5mm
Line Length
1m
Wire Rod
RG174 wire
Support Signal
4G+WIFI+GPS
GPS Frequency
1561-1575.42MHz
4G Frequency
700-2700 MHz
2.4G_WIFI frequency
2400-2500MHz
