Industrial Vehicles ADAS Intelligent Driving Assistance System
Menu
Industrial Vehicles ADAS Intelligent Driving Assistance System
Safe handling, Effortless handling
Make
Industrial Vehicle Field
Leading AI Security Products
Accurate identification, Real-time monitoring
Waterproof and dustproof
4-way camera expansion
Single quick installation
Personalized voice, Logo customization
Recognition rate >98%
Multiple control signal output
Beidou, GPS dual mode positioning

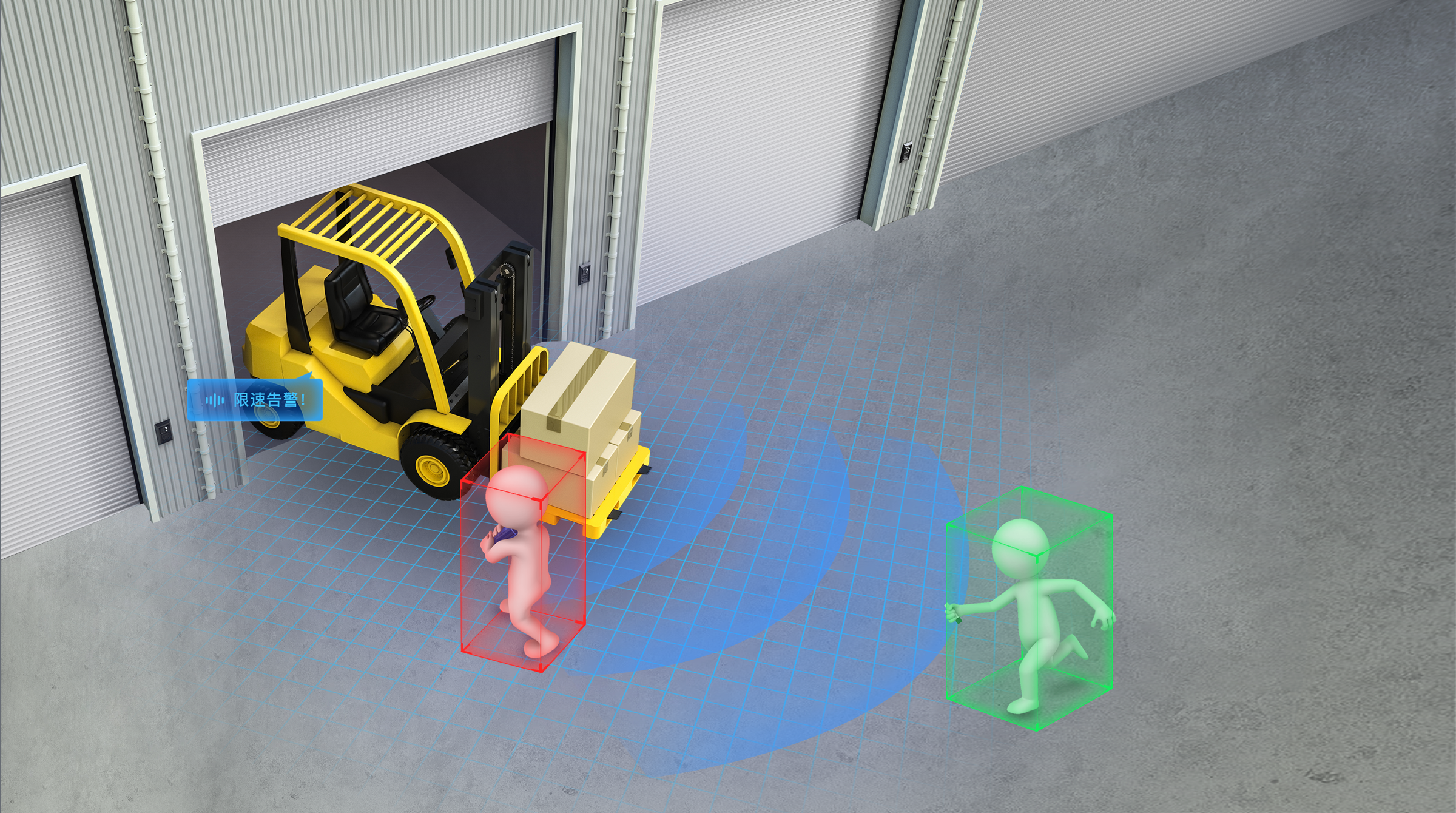

High-precision identification of pedestrians and real-time detection, when there is a potential risk detected in the distance between the vehicle and the pedestrian, timely warning.
Real Time Pedestrian Detection

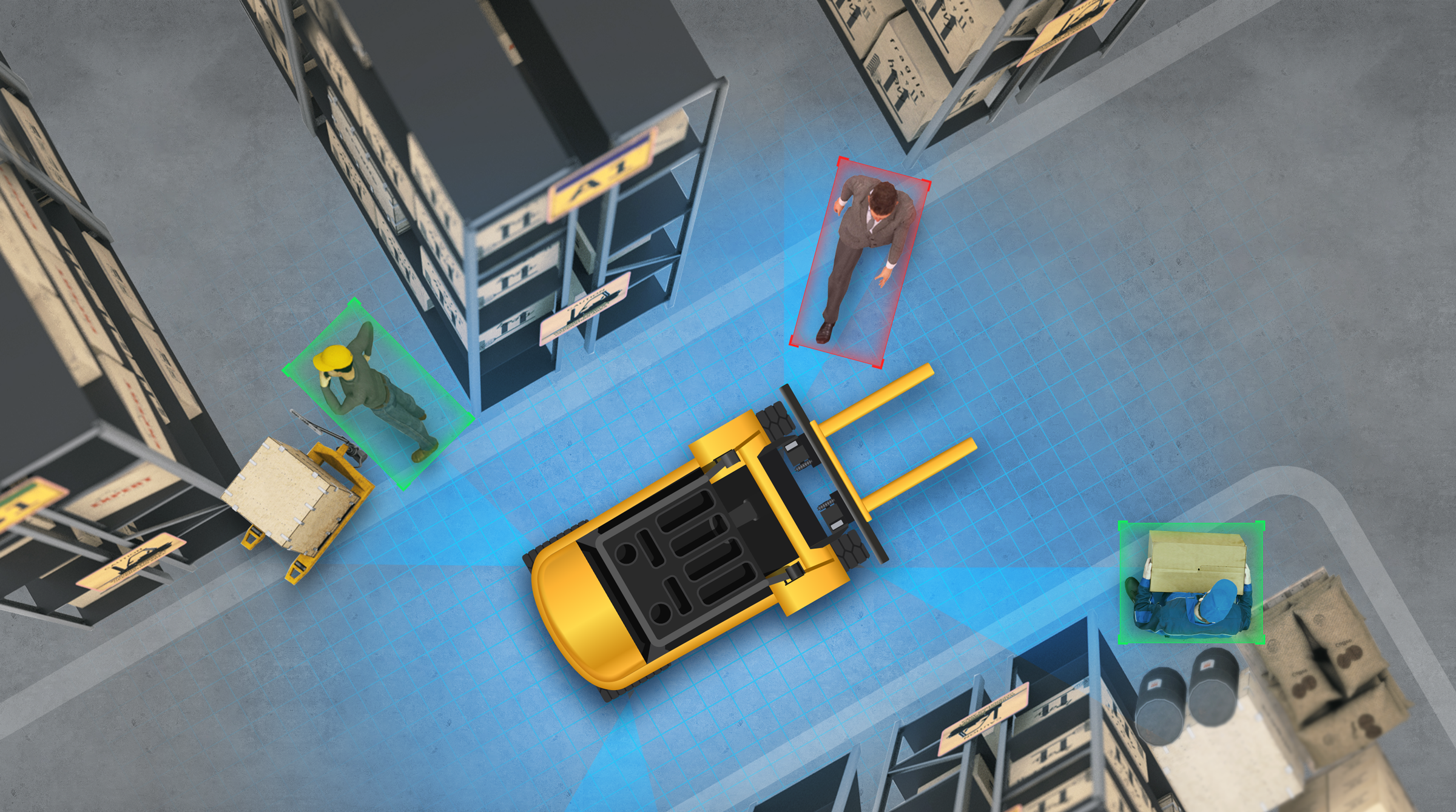

Blind Spot Monitoring
Real time monitoring of blind spots around the vehicle in all directions (single 100 degree, supporting 4 routes), and alerting the vehicle when pedestrians approach a dangerous distance.
Custom Area Settings
Customize and draw the alarm area range according to the usage scenario, reminding the driver of the presence of personnel within the specified range, and meeting the personalized needs of customers.
Digital Video Record
Real time local recording of vehicle driving process, default 14 days (640 * 480), optional extended storage for 30 days.
Cloud Visualization System
Real time statistics and visualization of alarm data to comprehensively reduce accident rates; Vehicle trajectory cloud monitoring, with traceability of responsibility allocation.
Personnel Management
Alarm Image
Alarm Location
Data Analysis
Vehicle Management
Real Time Positioning
Electronic Fence
Driving Trajectory
AI Multi Scene Camera Free Selection

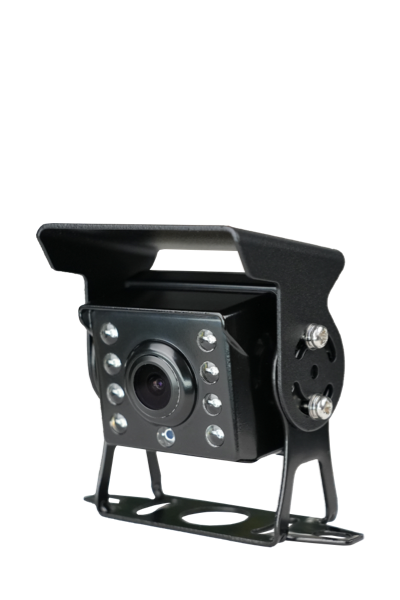

Wide Dynamic
Dynamic gain adjustment ensures image clarity under any lighting conditions.
- Free upgrade
- Focal length 2.8mm
- 100° Visual angle
- Automatic wide dynamic
- Recognition distance ≤10m
- Working temperature -30℃~+70℃
- Suitable for ever-changing environments, with strong light adaptability.

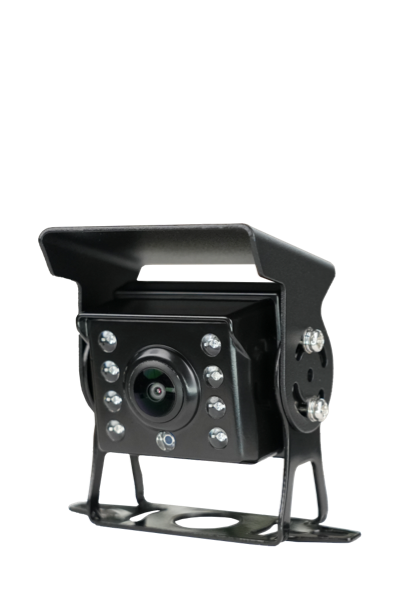

Wide Angle
Wide field of view coverage, suitable for large tonnage blind spots and larger vehicle models.
- Free upgrade
- Focal length 1.9mm
- 160° Visual angle
- Automatic wide dynamic
- Recognition distance ≤8m
- Working temperature -30℃~+70℃
- Can cover a wider field of view, reduce blind spots, suitable for indoor production workshops, logistics centers, etc.
Wide Dynamic Telephoto
High magnification monitoring field of view, clear display of ultra long distance images.
- Free upgrade
- Focal length 6mm
- 55° Visual angle
- Automatic wide dynamic
- Recognition distance ≤20m
- Working temperature -30℃~+70℃
- Can achieve long-distance shooting, suitable for large warehouses, etc.

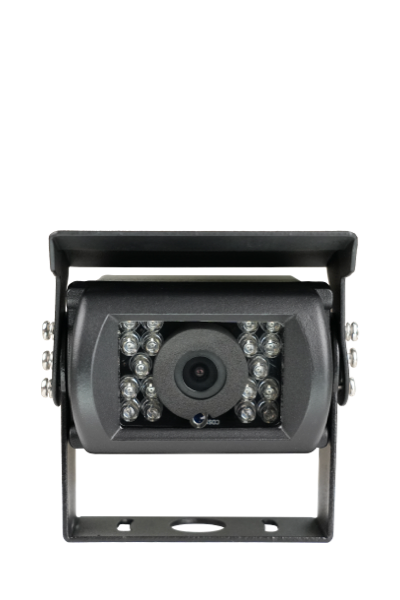

Cold Storage Version
Waterproof, dustproof, anti-corrosion, shockproof, and able to operate normally in low temperature environments.
- Optional upgrade
- Focal length 2.8mm
- 100° Visual angle
- Automatic wide dynamic
- Recognition distance ≤10m
- Working temperature -30℃~+70℃(Sustainable low-temperature use)
- Can operate continuously in various low-temperature environments, suitable for cold storage, cold storage shelves, etc.

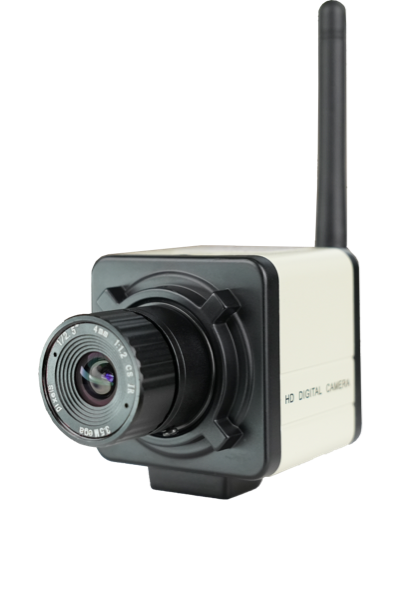

Wireless Version
Supports wireless WIFI direct connection, convenient remote monitoring and data transmission.
- Optional upgrade
- Focal length 4mm
- 90° Visual angle
- Automatic wide dynamic
- Recognition distance ≤10m
- Working temperature -30℃~+70℃
- Wireless transmission can be achieved through the network, suitable for logistics centers, three-way narrow channel forklifts, etc.

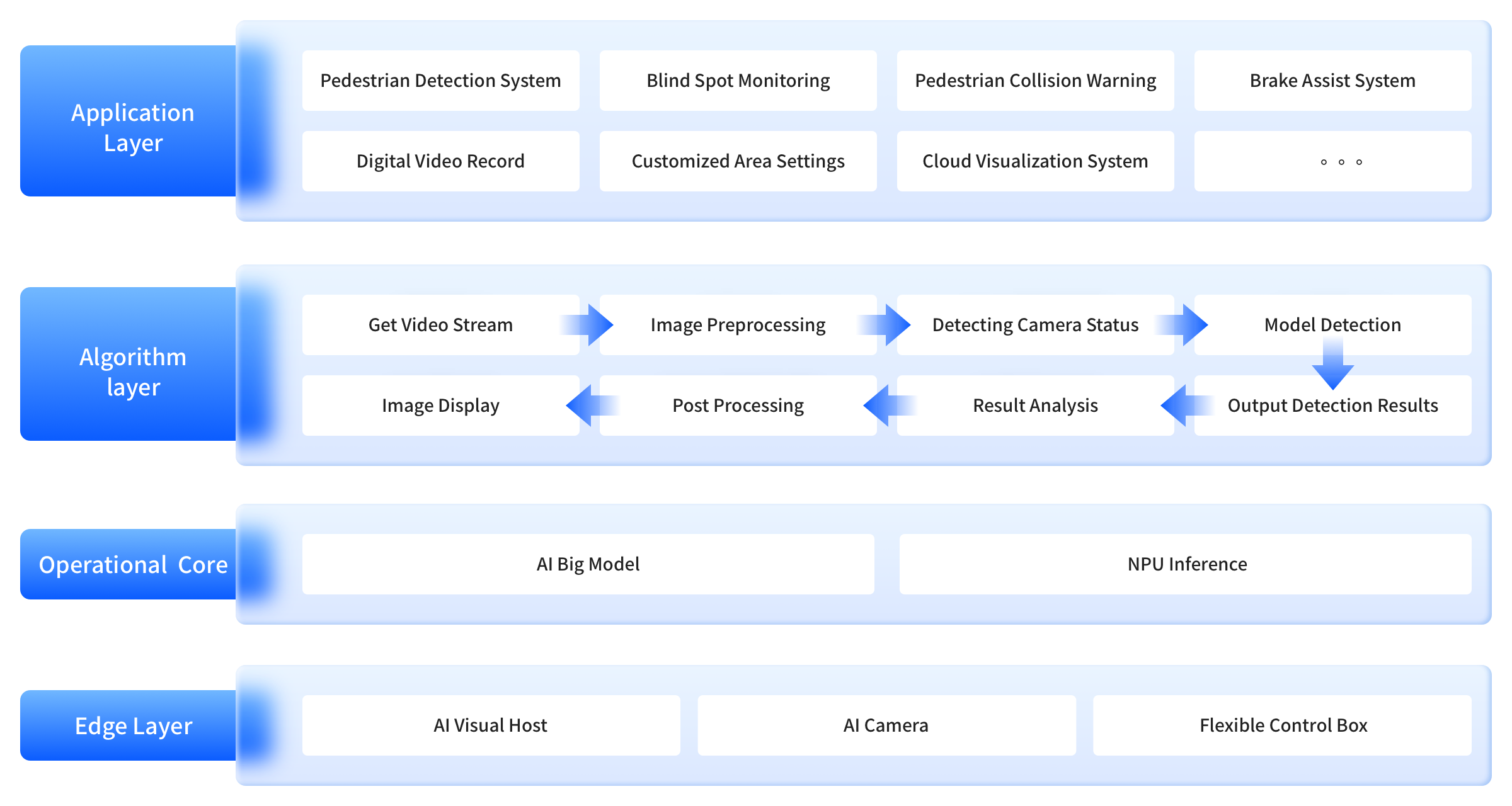

Solution Architecture
Product List
AI Visual Host*1
Standard configuration
Industrial Waterproof Display*1
Standard configuration 7-inch
Infrared Camera*2
Standard configuration, Optional 4-way camera
Ac Adapter *1
Standard configuration
HDMI Connection Cable*1
Standard configuration
External Alarm Device*1
Standard configuration
Switch Signal Box*1
Standard configuration
Three-in-one Antenna*1
Standard configuration

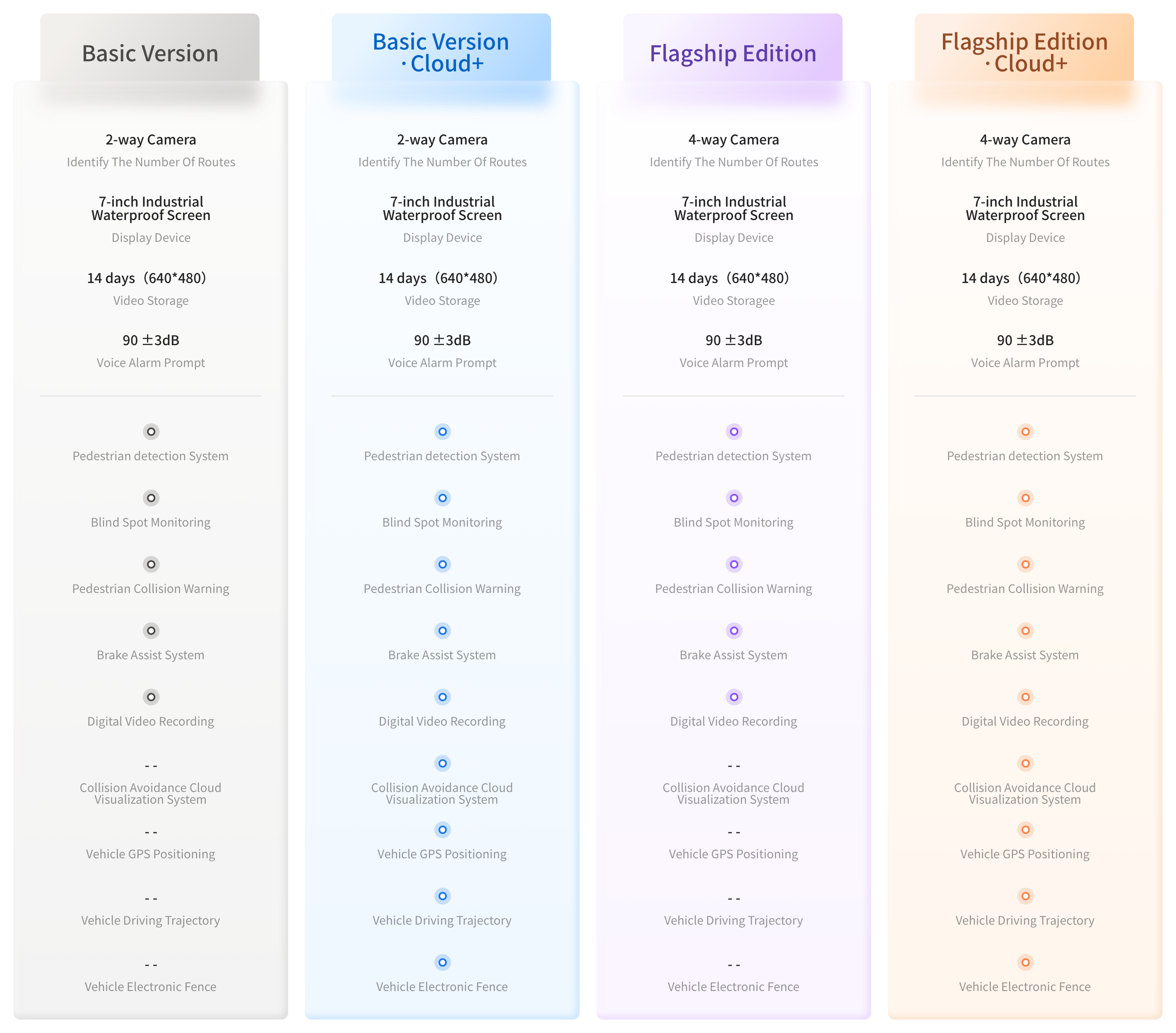

Version Combination
